ASSEMBLIES AND COMPONENTS

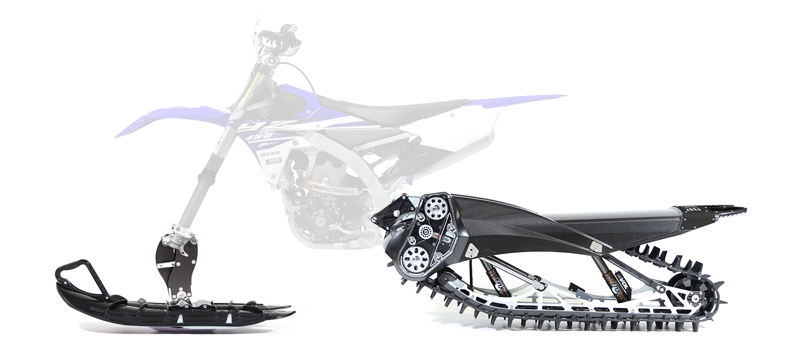

The YETI SnowMX is made from two precision made assemblies, the front assembly and the rear assembly. Check out specifications and other useful information here.

FRONT ASSEMBLY

MAXKEEL SKI
SPINDLE

BIKE ADAPTERS

To find out how YETI SnowMX fits your bike click here for more details.

REAR ASSEMBLY

SYNCRODRIVE
BIKE MOUNT
DRIVE ASSEMBLY
REAR SUSPENSION
TRACK
CHASSIS
SOFT STRUT




Three carbon fibre ¼” blades, 27 titanium bolts,  (10) 5 axis CNC machined 6061 aluminum parts connect your MAXKEEL ski to the front forks of your bike, providing the ultimate in strength, while being flexible. The YETI spindle will impress you with it’s CNC’d beauty and precision.

2 - YETI MAXKEEL SKI



Manufactured by PPD (the world leader in snowmobile skis), the MAXKEEL provides a consistent, confident feel that will not push or slide on the trail, while floating on top of the deepest powder, allowing you to carve lines you never dreamed possible. The MAXKEEL’s skags and side runners are made of HARDOX wear plate.

3 - YETI BIKE MOUNT



YETI SnowMX is equipped with a bike mount assembly that allows the YETI’s chassis to quickly adapt to most MX bikes on the market. Precision machined bike adapters are included with YETI SnowMX. The bike mount features an eccentric cam chain tensioning system that can adjust up to 3” of chain slack and is also equipped with an automatic chain tensioner which takes up the chain slack between maintenance adjustments.

4 - YETI SYNCRODRIVE SYSTEM



The SYNCRODRIVE delivers the maximum horsepower from your bike into the track and then to the snow.  The SYNCRODRIVE requires less horsepower than a chain drive from 0 to 1/3 throttle, less horsepower from 1/3 to 2/3 throttle and less horsepower from 2/3 to WFO. SYNCRODRIVE is equipped with a mitsuboshi 720mm belt, 29mm wide belt, which has a sheer breaking strength of 24,000n ( 5395 pounds of force). The SYNCRODRIVE requires very little maintenance and no lubrication. Our belt drive system is encased and protected in a sealed poly-carbonate deflector housing tested up to -40C conditions.

5 - RRS SHOCK BY RAPTOR



The RRS shock was available on 2017 & 2018 models only. This piggy-back reservoir shock, features 20 clicks of compression adjustment, allowing the rider to quickly fine tune to their preferred ride. The RRS adds an additional 9” of suspension travel to the YETI’s standard 9” giving you 18”+ of suspension, soaking up those trails with ease.

6 - YETI DRIVE ASSEMBLY



Machined from 6AL-4V, the YETI SnowMX Titanium Drive and Jackshaft combination make the ultimate statement in the latest YETI improvements. These Titanium shafts are 2.4 pounds lighter than the special steel shafts that are standard equipment in the YETI. This decreases the overall weight, while increasing the power of your YETI SnowMX.

7 - YETI SUSPENSION



8 - yETI CHASSIS



Built to exacting tolerances, the YETI SnowMX carbon fibre chassis is manufactured with a kevlar layer, a special geo grid layer, upto 16 layers of carbon, a clear coat finish, and custom under laid custom graphic. As strong as steel but 7x lighter. Takes abuse, big hits, drops etc, nothing is stronger, yet flexible and returns to original shape after flexing. YETI’s Chassis design, FEA tested featuring variable thicknesses in critical areas to create strength by shape, .140” thick in drive areas, .120” thick in back arches, .080 on top plate. It’s a work of art, that is not fragile.

9 - YETI track




No other product had made maneuvering your SnowMX bike easier. The FREEWHEEL kit is designed to fit the YETI SnowMX and the TIMBERSLED (not applicable for ARO model).  Both brands uses the same axle and parts.

11 - BIKE ADAPTER KIT



The YETI SnowMX bike adapter kits attach the  YETI to your bike.  You can get additional adapter kits if required to swap your YETI from bike to bike, easily.
